T94 - Brushed Stainless Steel Top Mount Barn Door Kit

FEATURES

– Durable stainless steel construction with a Brushed Stainless Steel finish

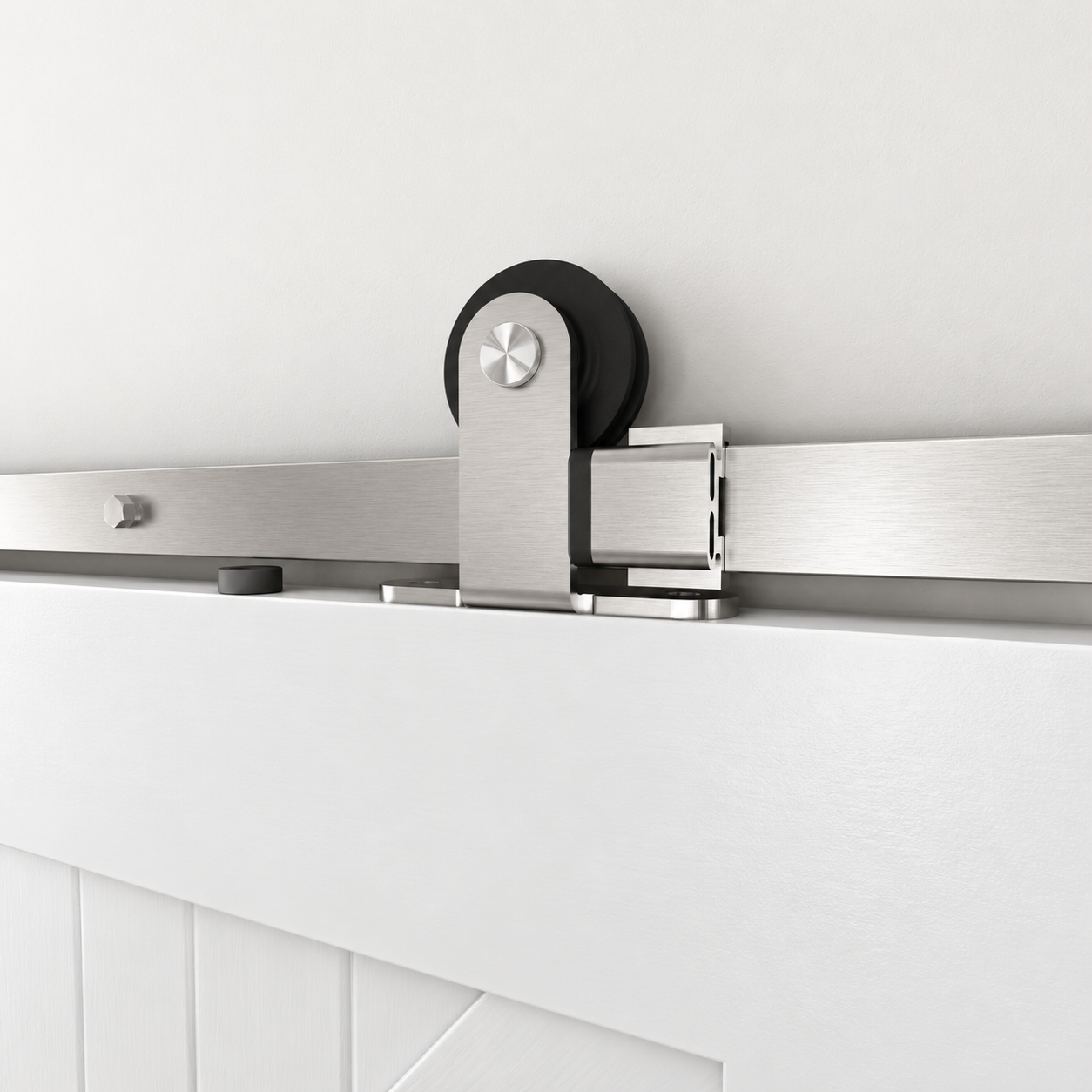

– Top-mounted hangers keep the front of the door free from visible hanger straps
– Heavy-duty design suitable for timber doors up to 1140mm wide and 100kg
– Smooth-rolling nylon rollers for effortless sliding
– End stops limit door travel
– Floor guide helps keep the door aligned and prevents swinging
– Anti-jump discs help prevent the rollers from lifting off the track
– Track fixing holes spaced at 450mm centres
– Complete track kit with installation instructions and fixings supplied

DIMENSIONS

– Track sections: 2 × 1143mm
– Total track length: 2286mm
– Track thickness: 6mm
– Track height: 40mm
– Suitable door thickness: 35–45mm

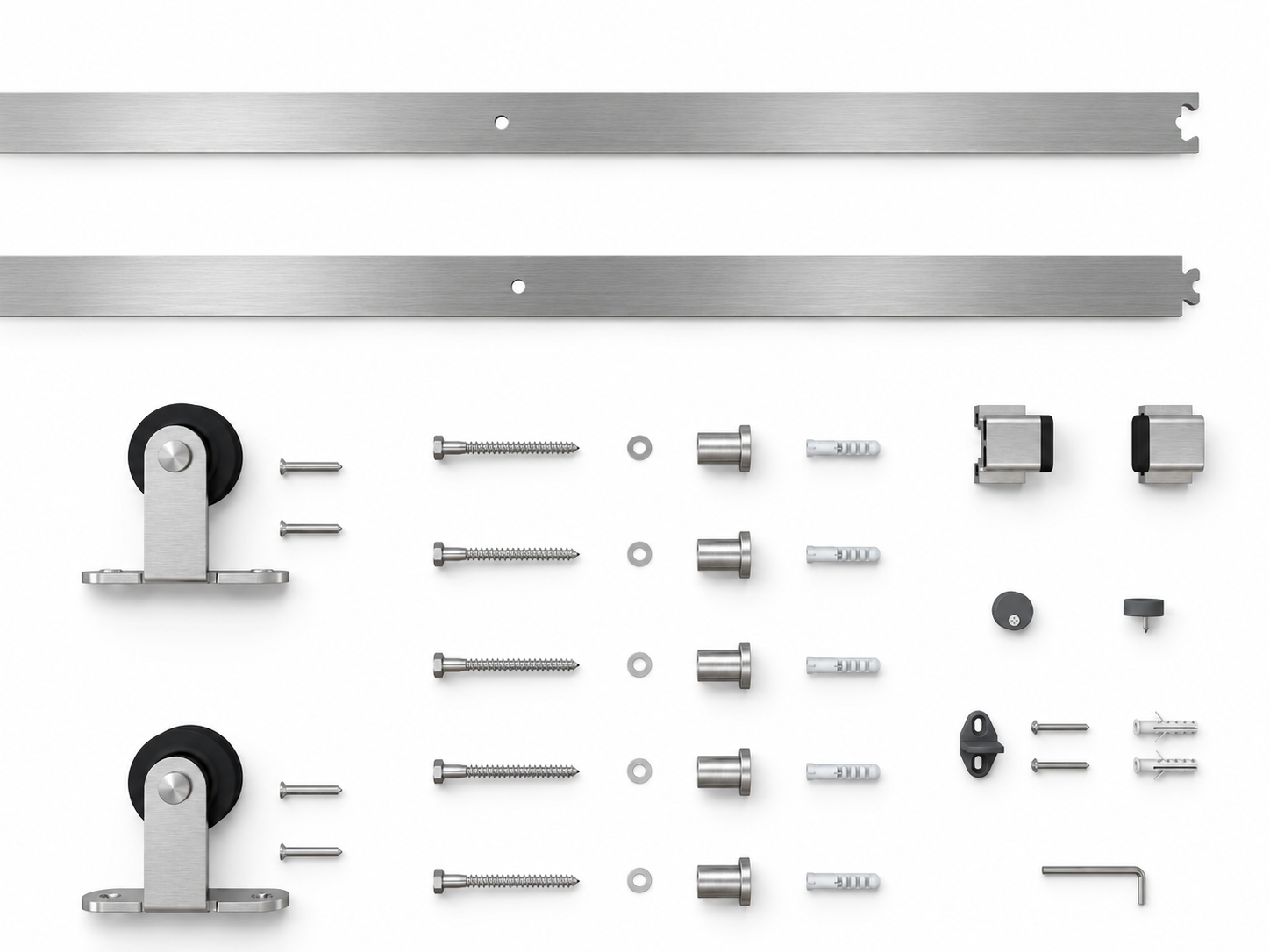

KIT CONTAINS

– 2 × 1143mm track sections with wedge cut-out joints
– 2 × top mount hangers with nylon rollers
– 2 × end stops
– 2 × anti-jump discs
– 1 × single floor guide
– 5 × mounting posts with corresponding bolts and washers
